GALAXY Pilot – P4.5, P5

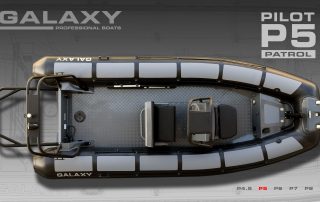

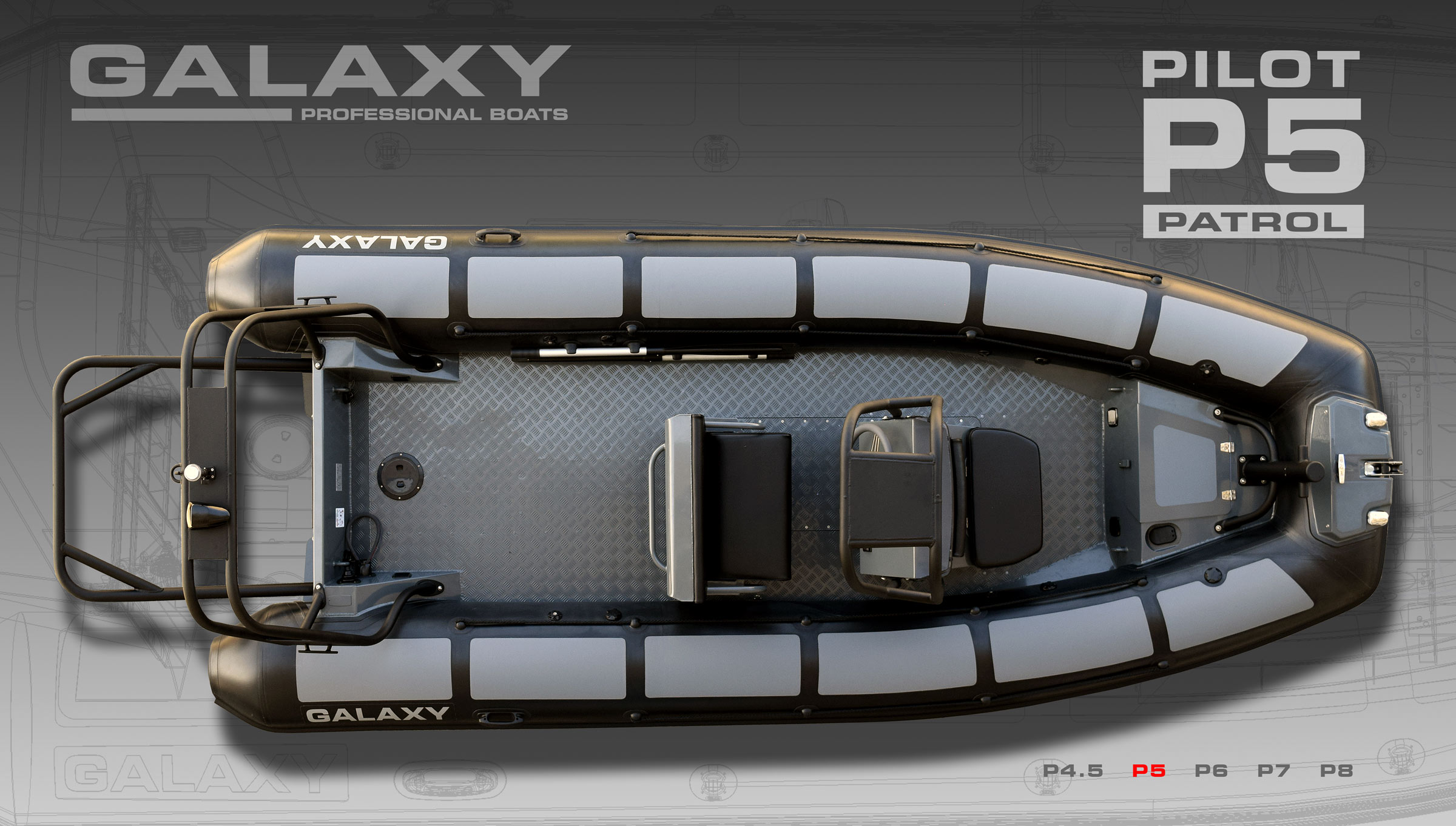

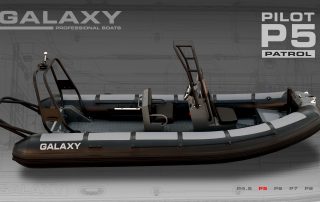

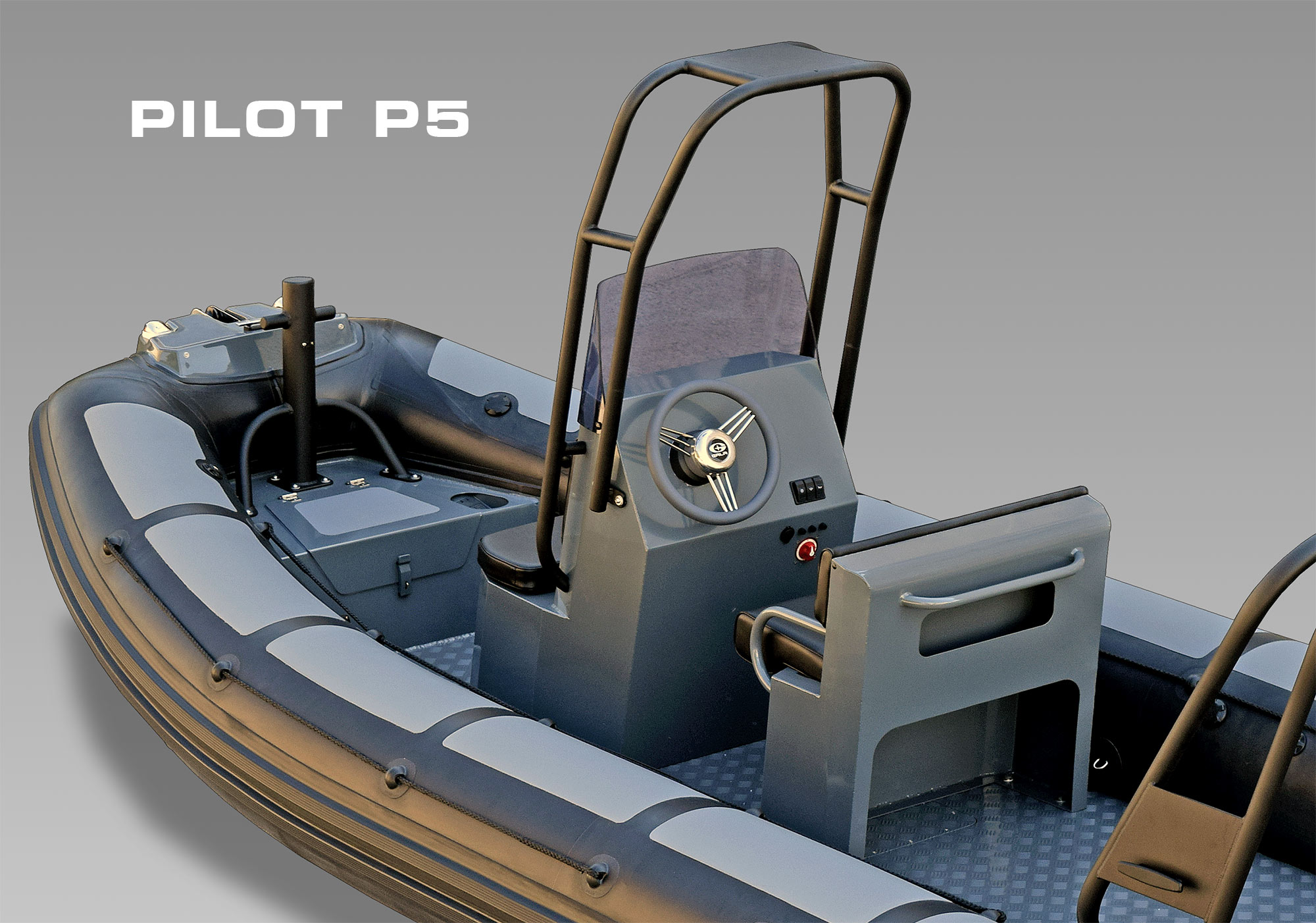

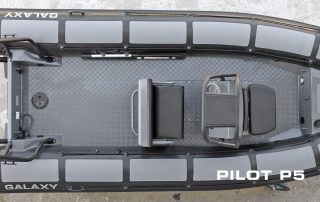

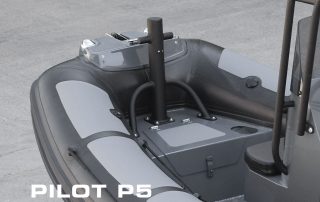

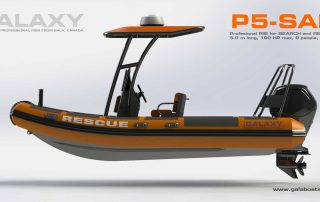

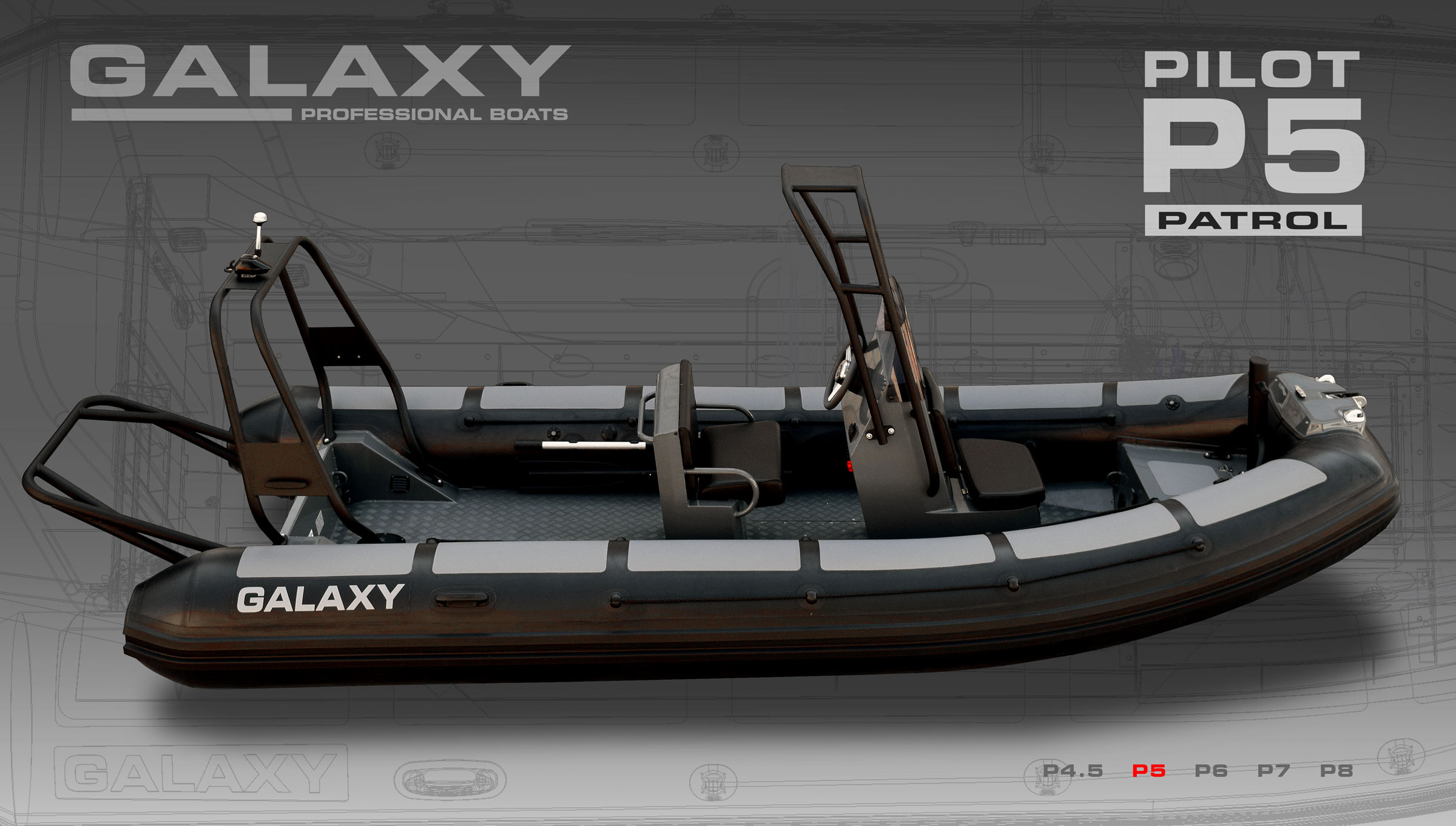

GALAXY P5 PATROL
16’5″ long, 100 HP max

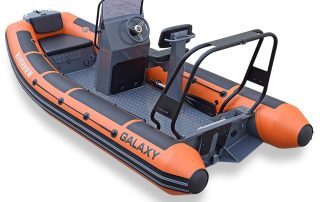

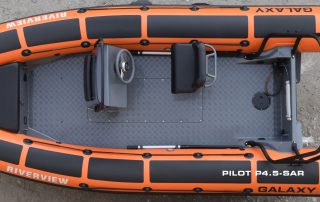

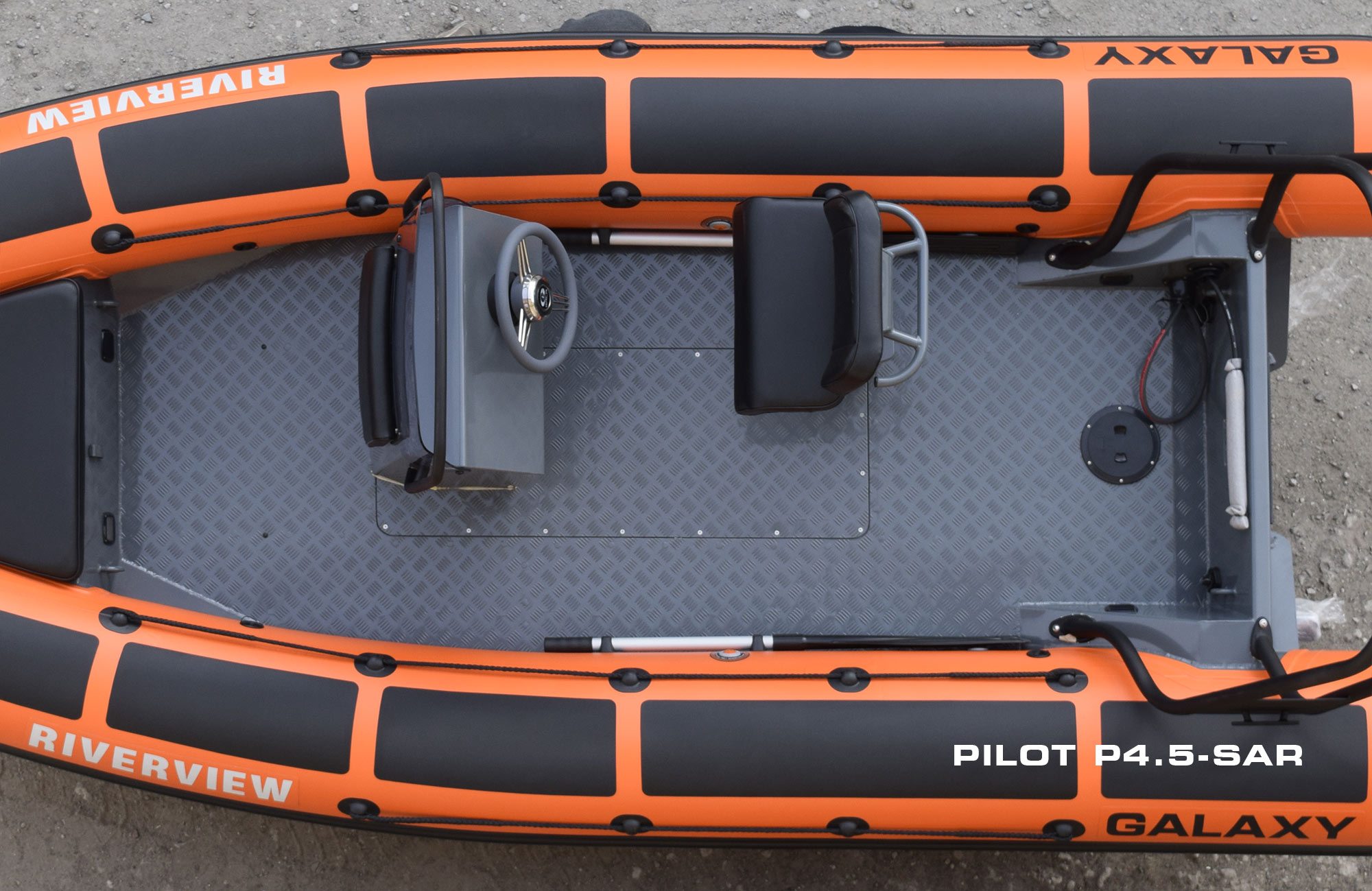

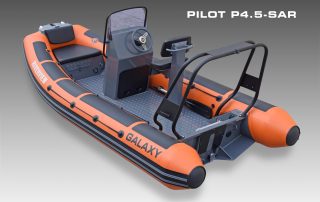

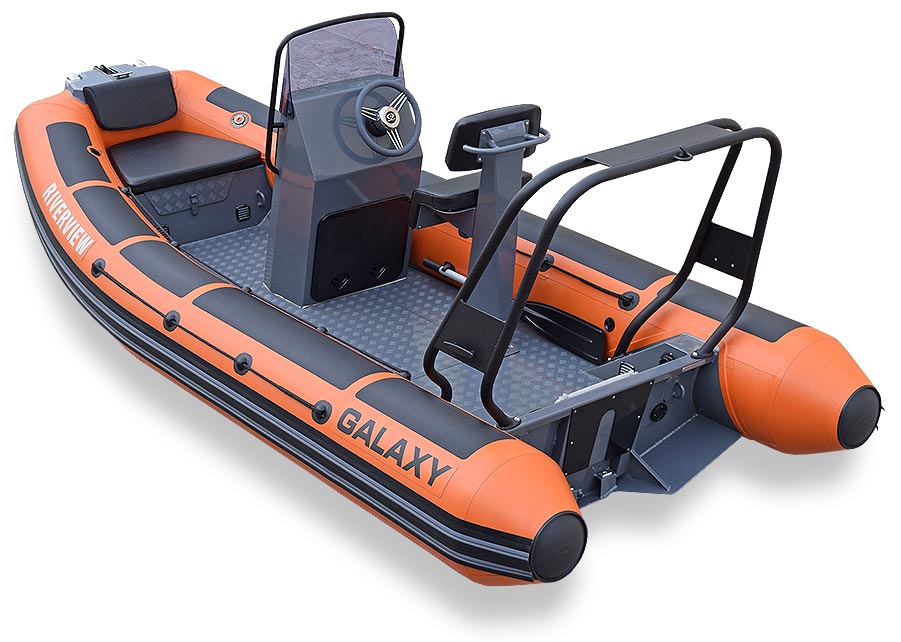

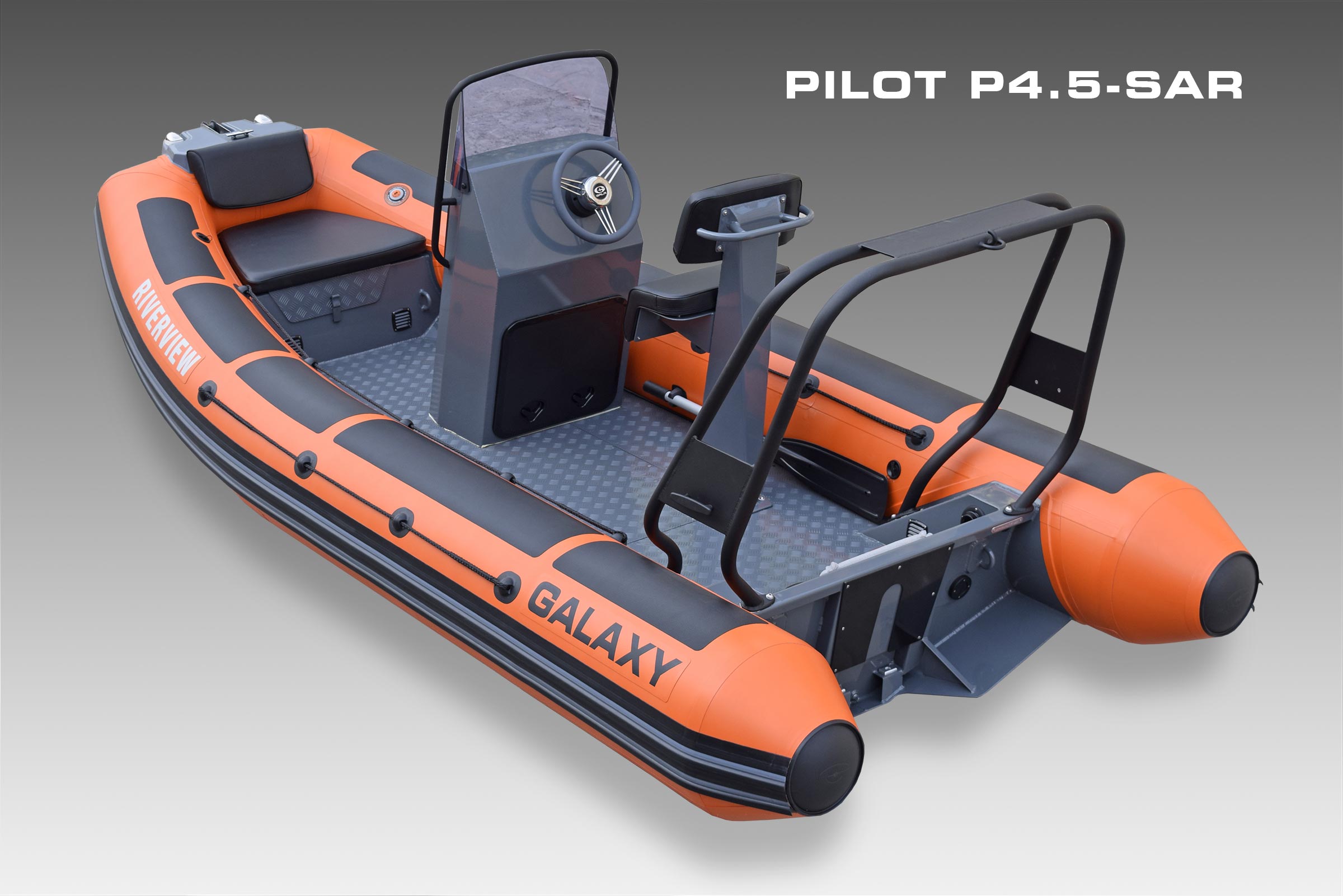

GALAXY P4.5 FIRE/SAR
14’9″ long, 70 HP max

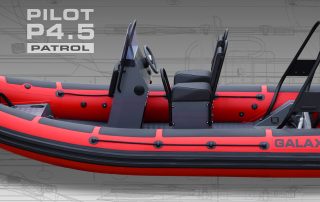

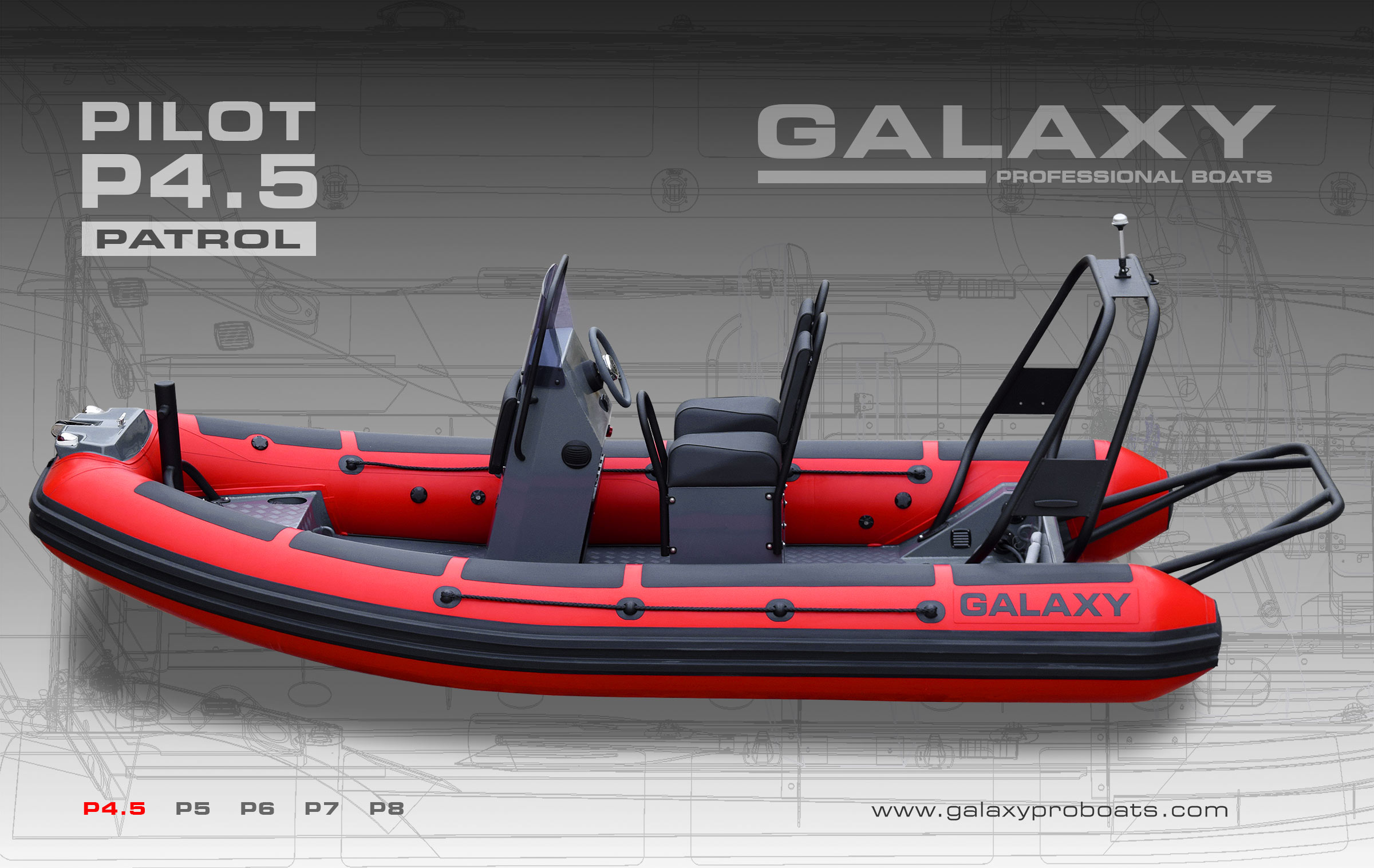

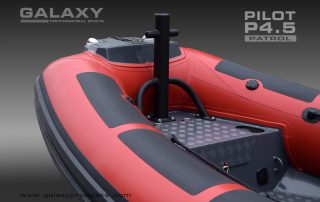

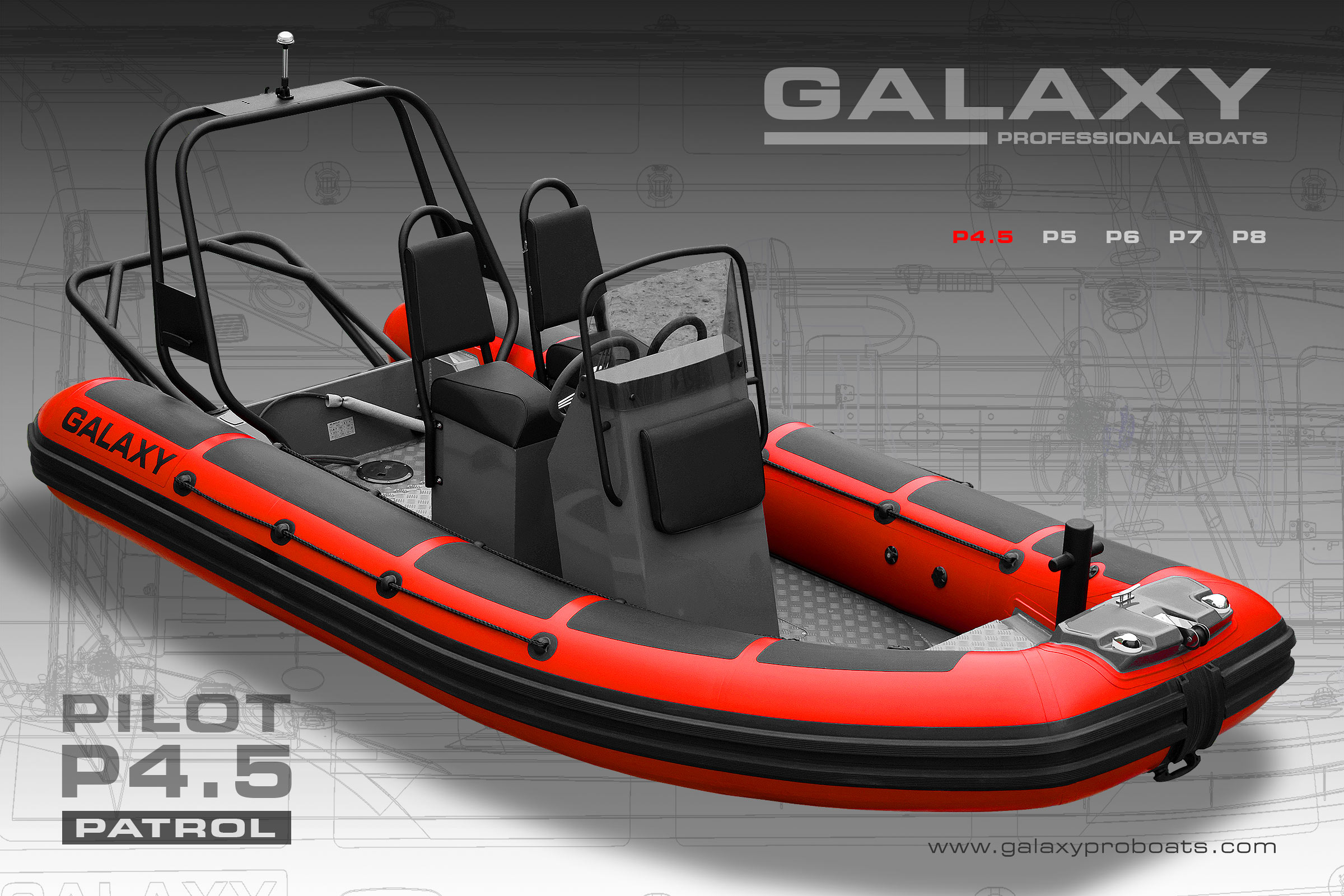

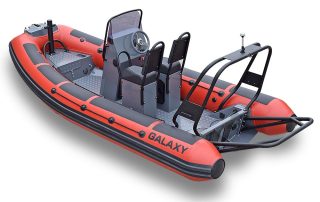

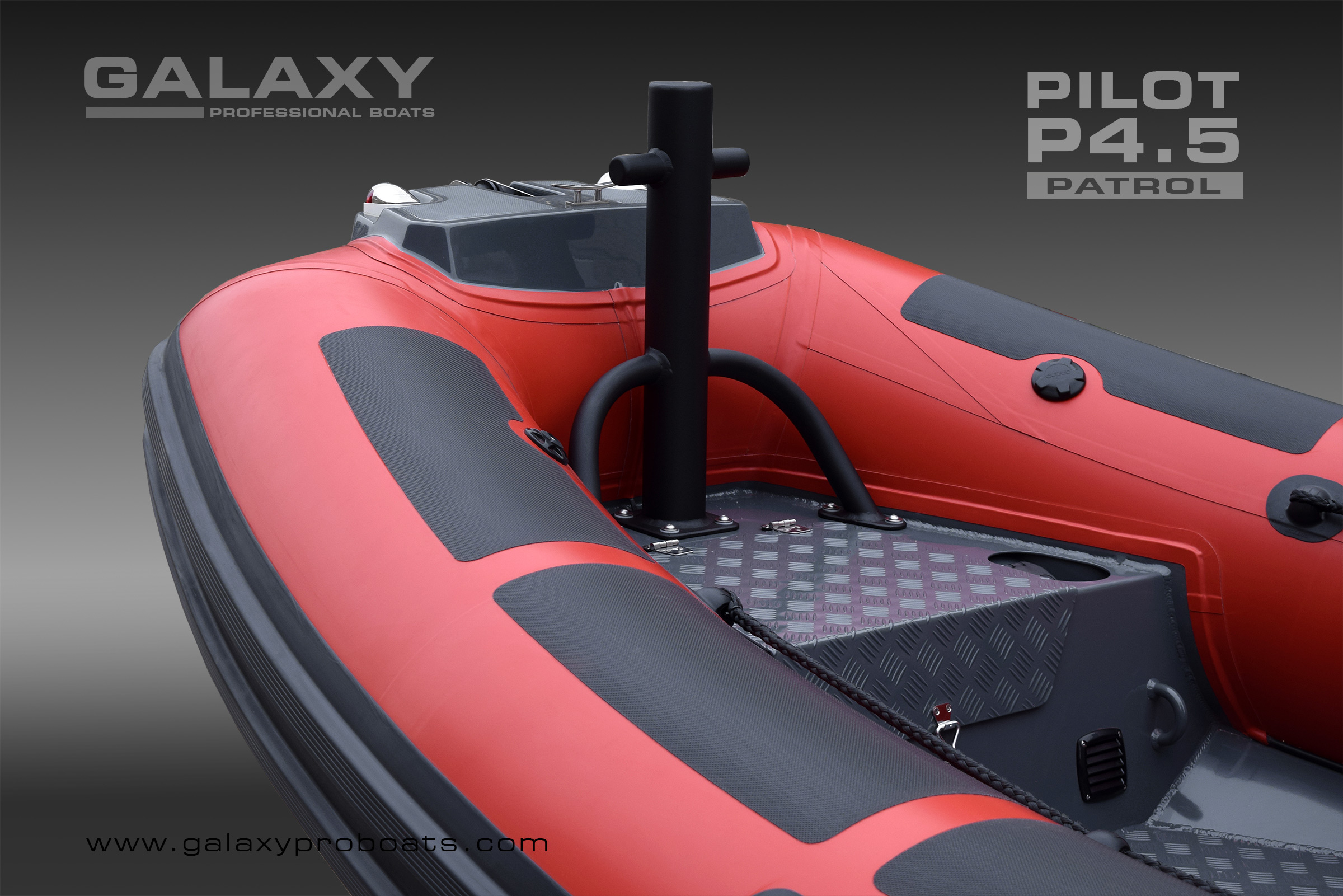

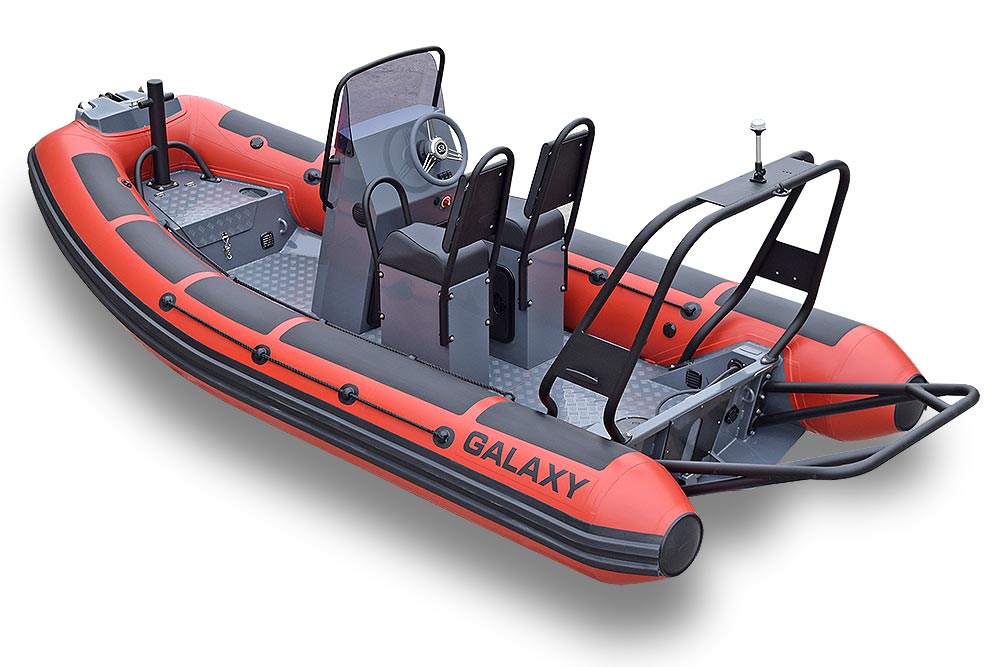

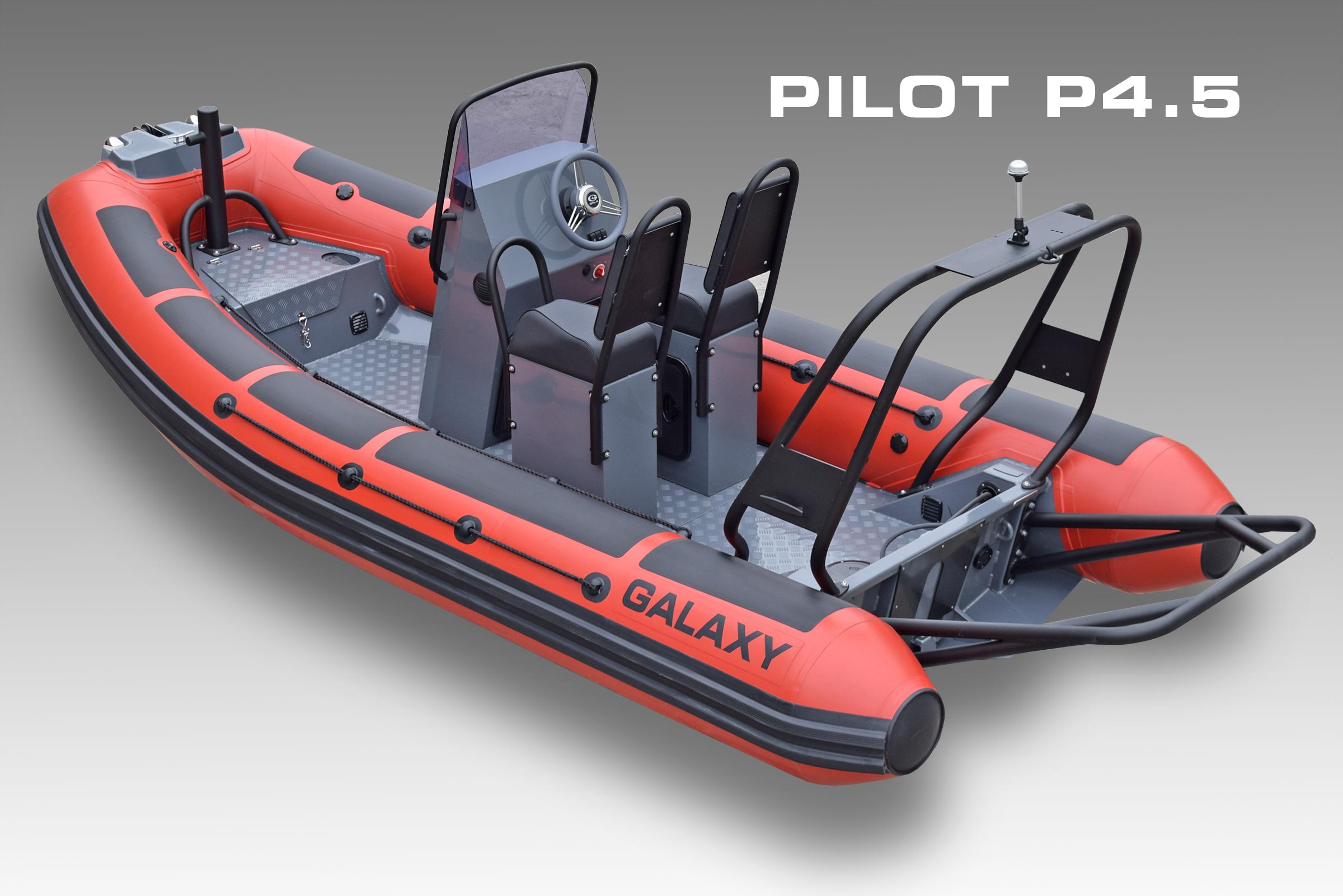

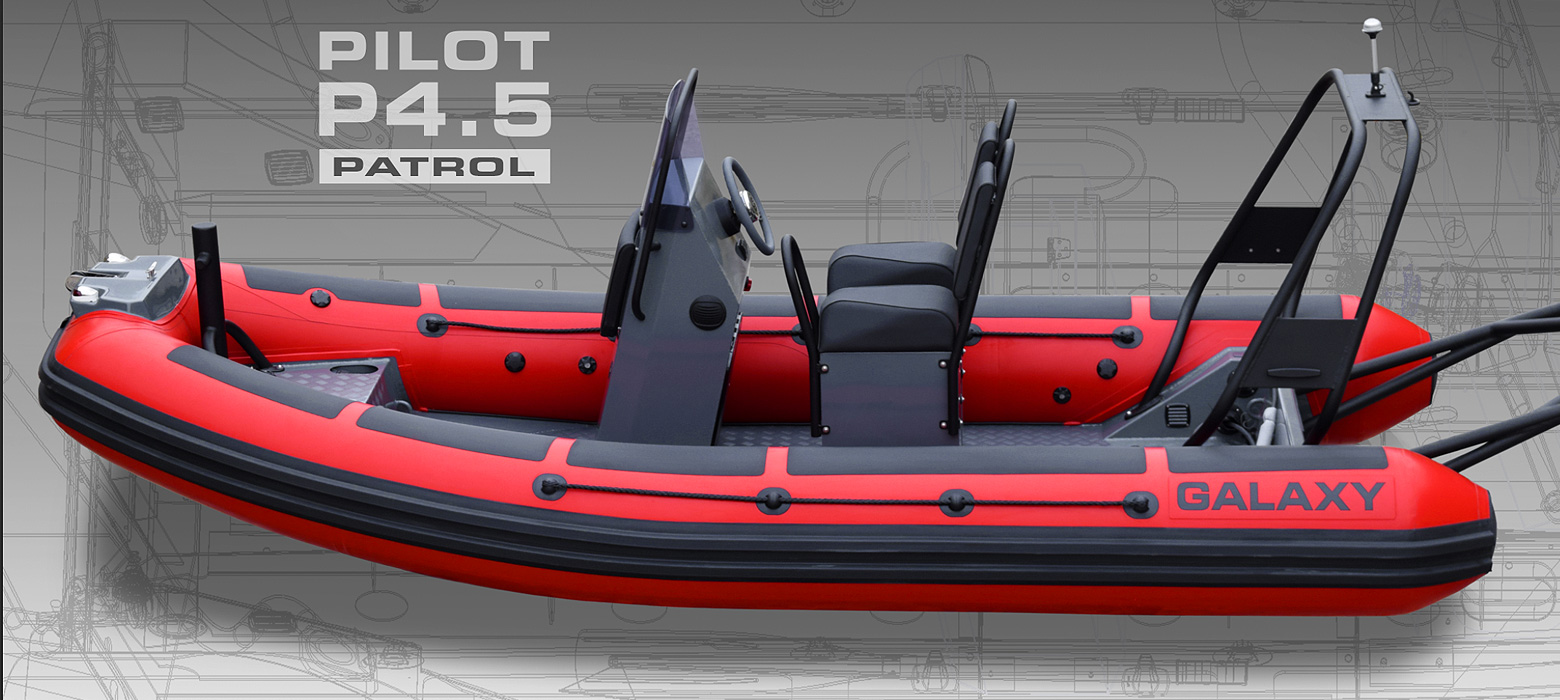

GALAXY P4.5 PATROL
14’9″ long, 70 HP max
GALAXY P4.5 OPEN
14’9″ long, 70 HP max

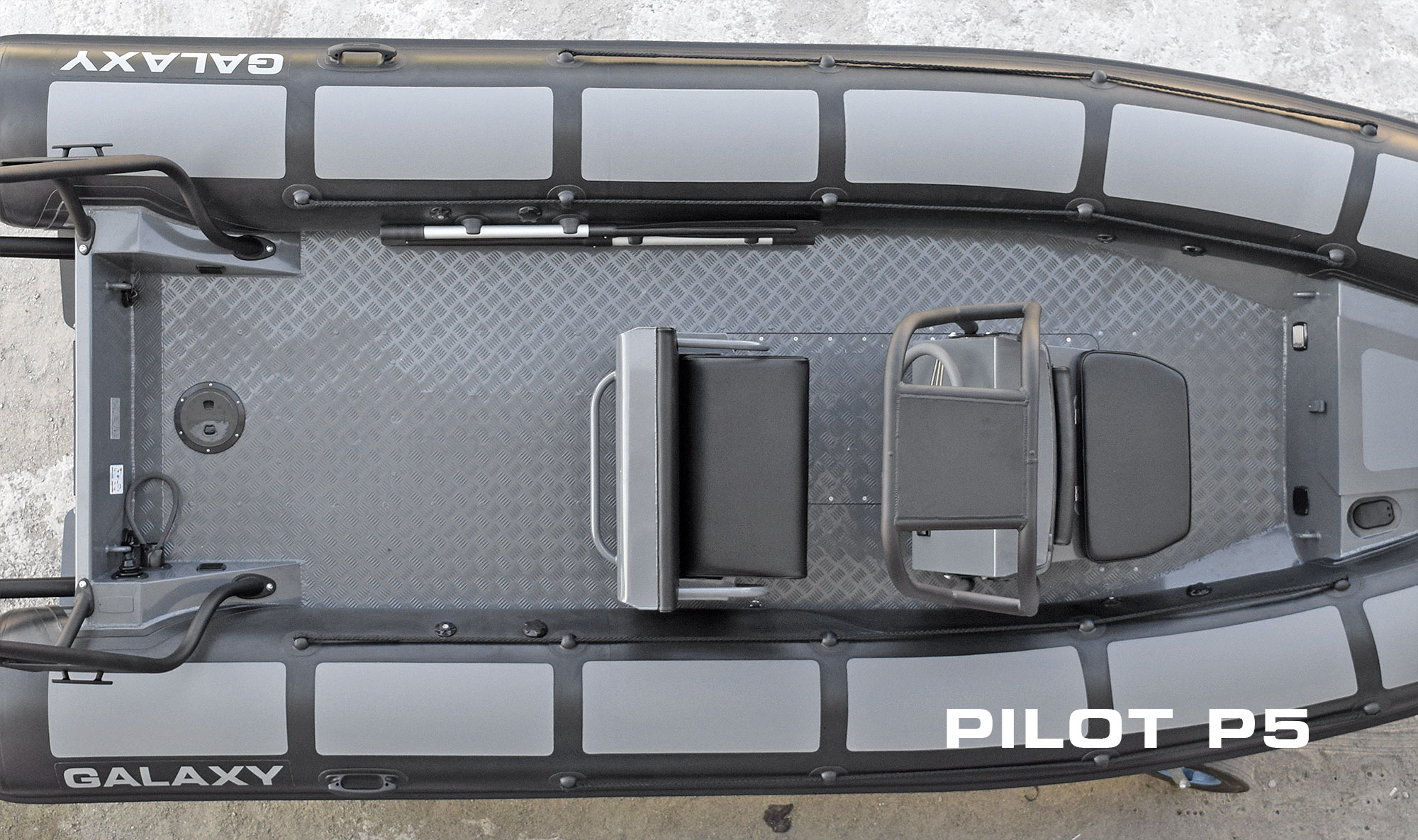

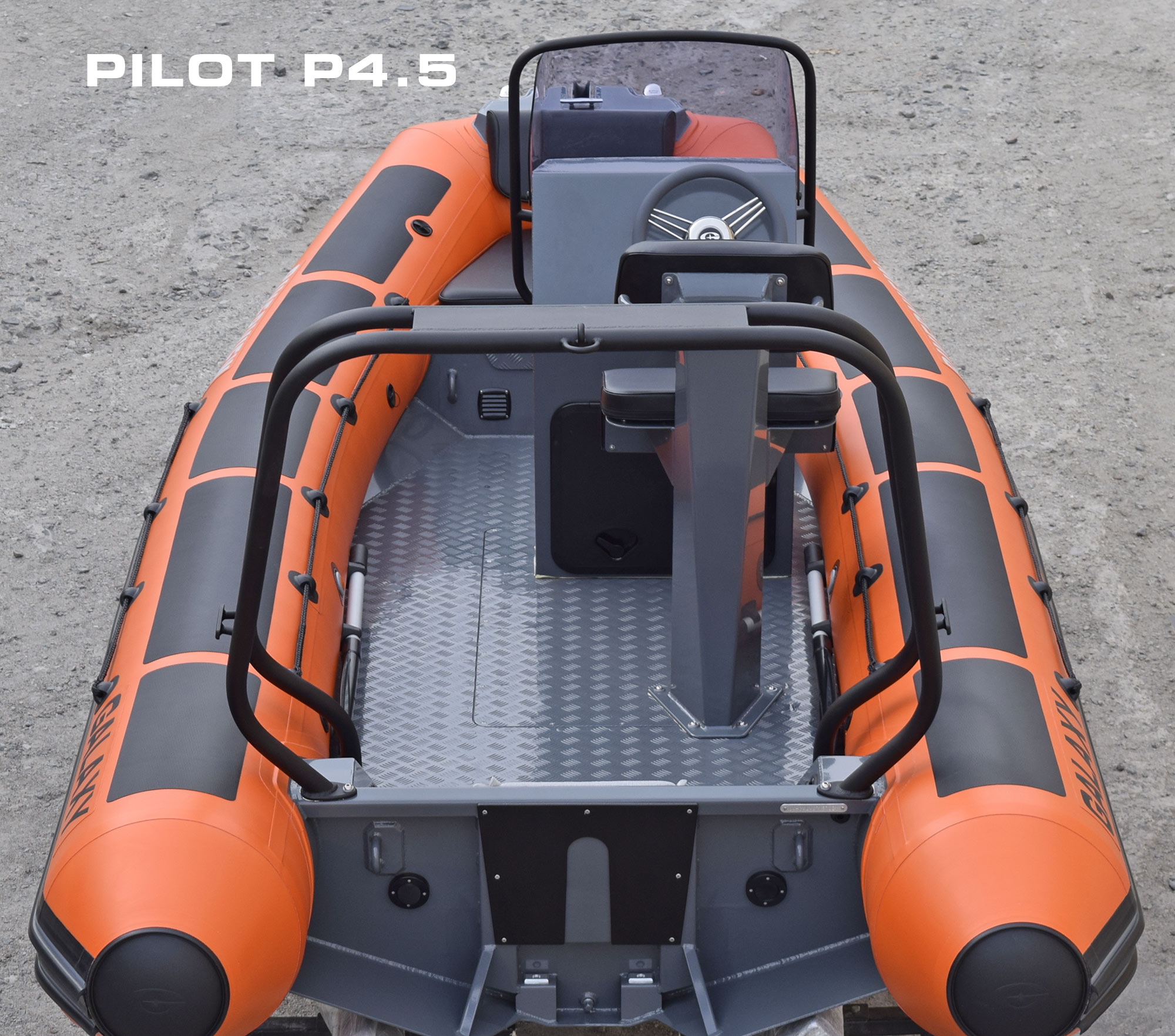

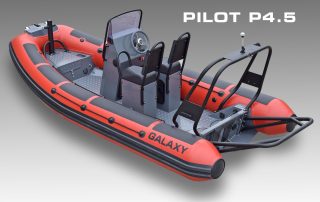

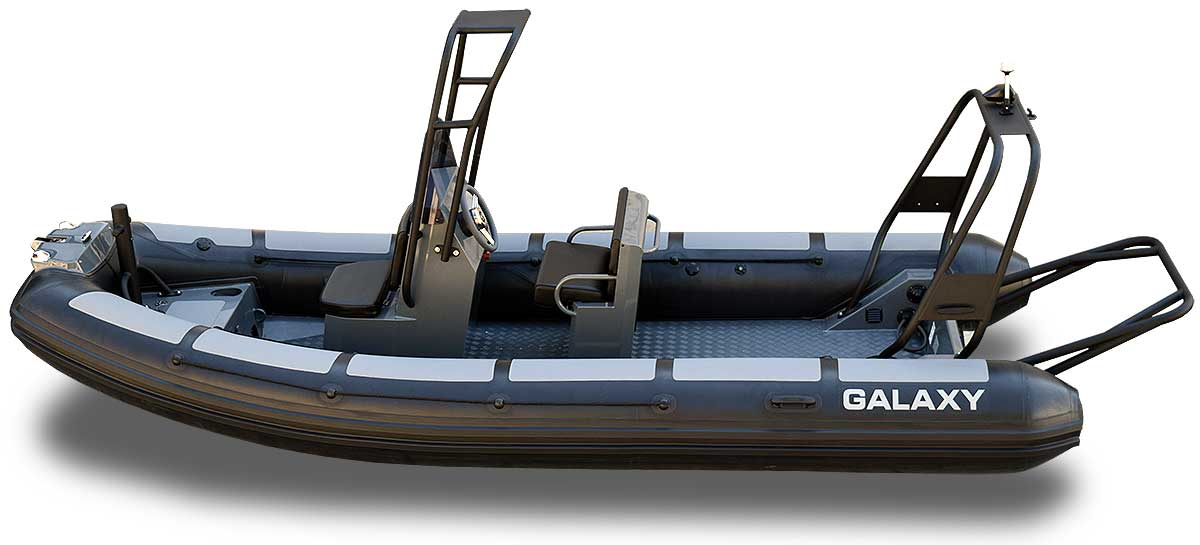

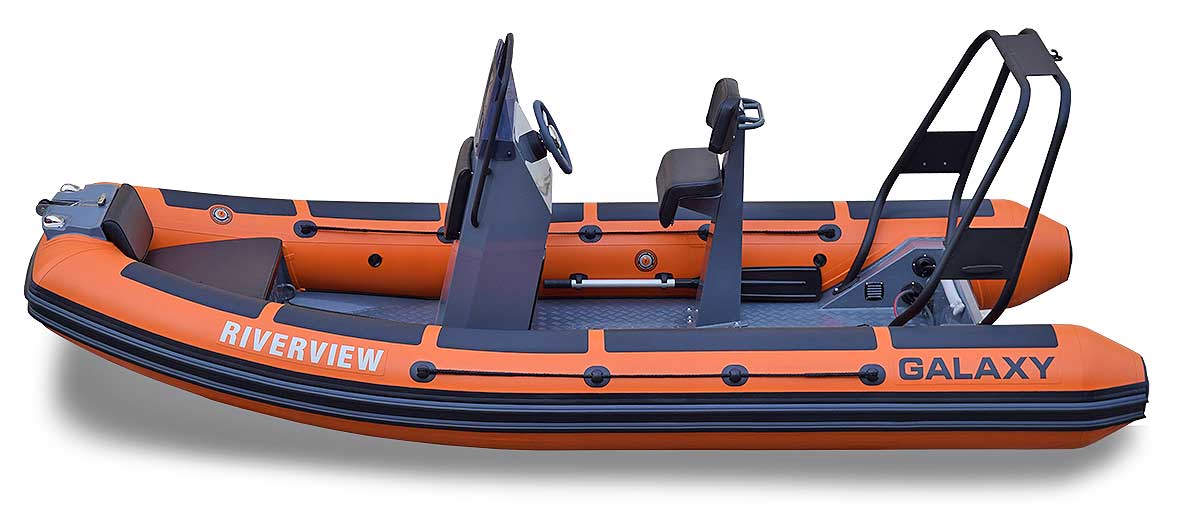

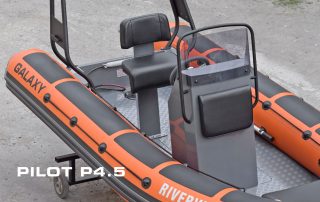

GALAXY Pilot P4.5 and Pilot P5 are two mid-size Professional RIBs, smallest in GALAXY range: P4.5 is 450 cm (14’9”) long and P5 is 500 cm (16’5”) long.
Both models are created for Patrol, Law Enforcement, Search and Rescue (SAR), Commercial use and much more in inland and sea costal waters. They are light and easy to transport, so they are great when mobility is needed.
Key features:

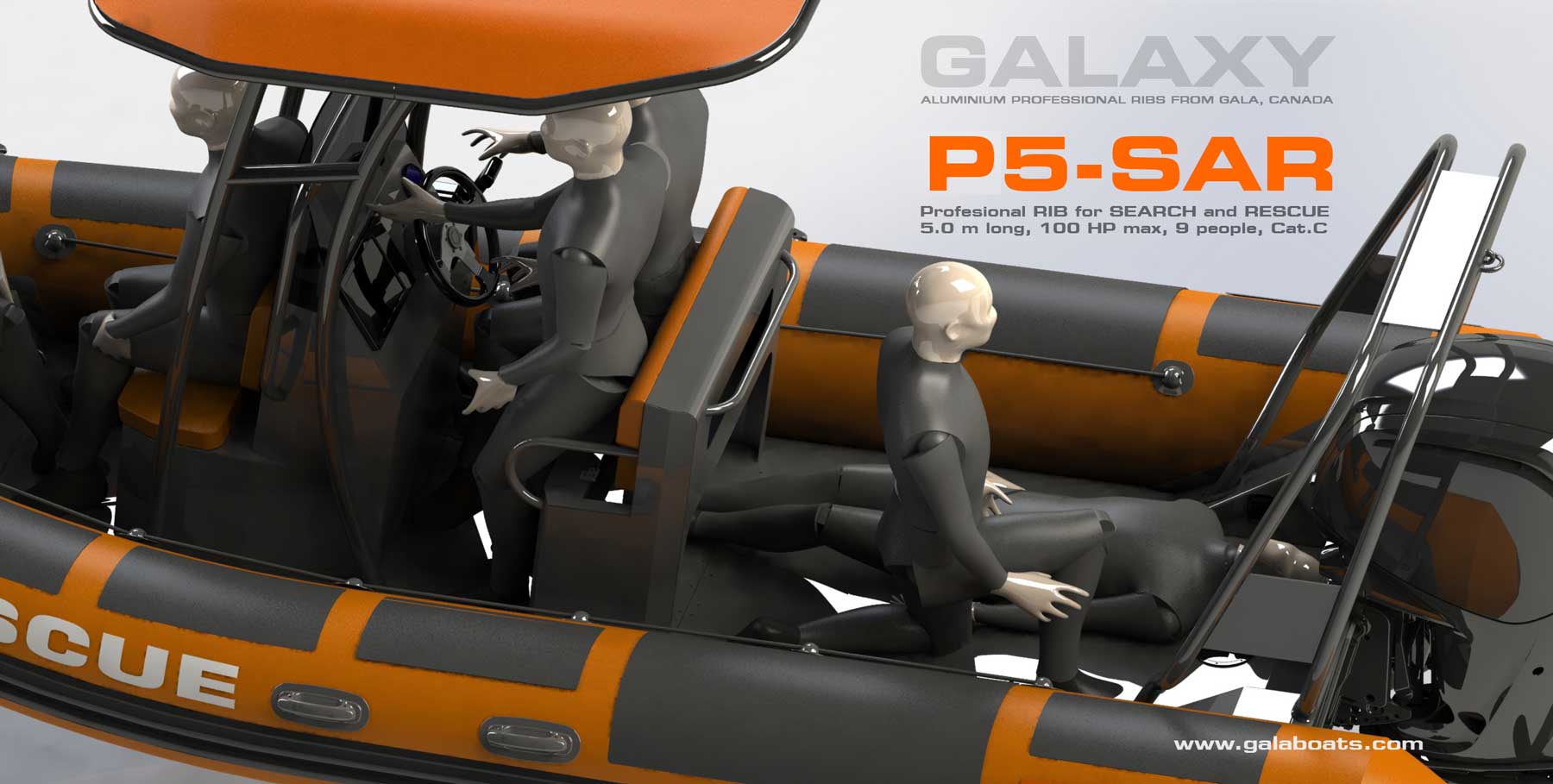

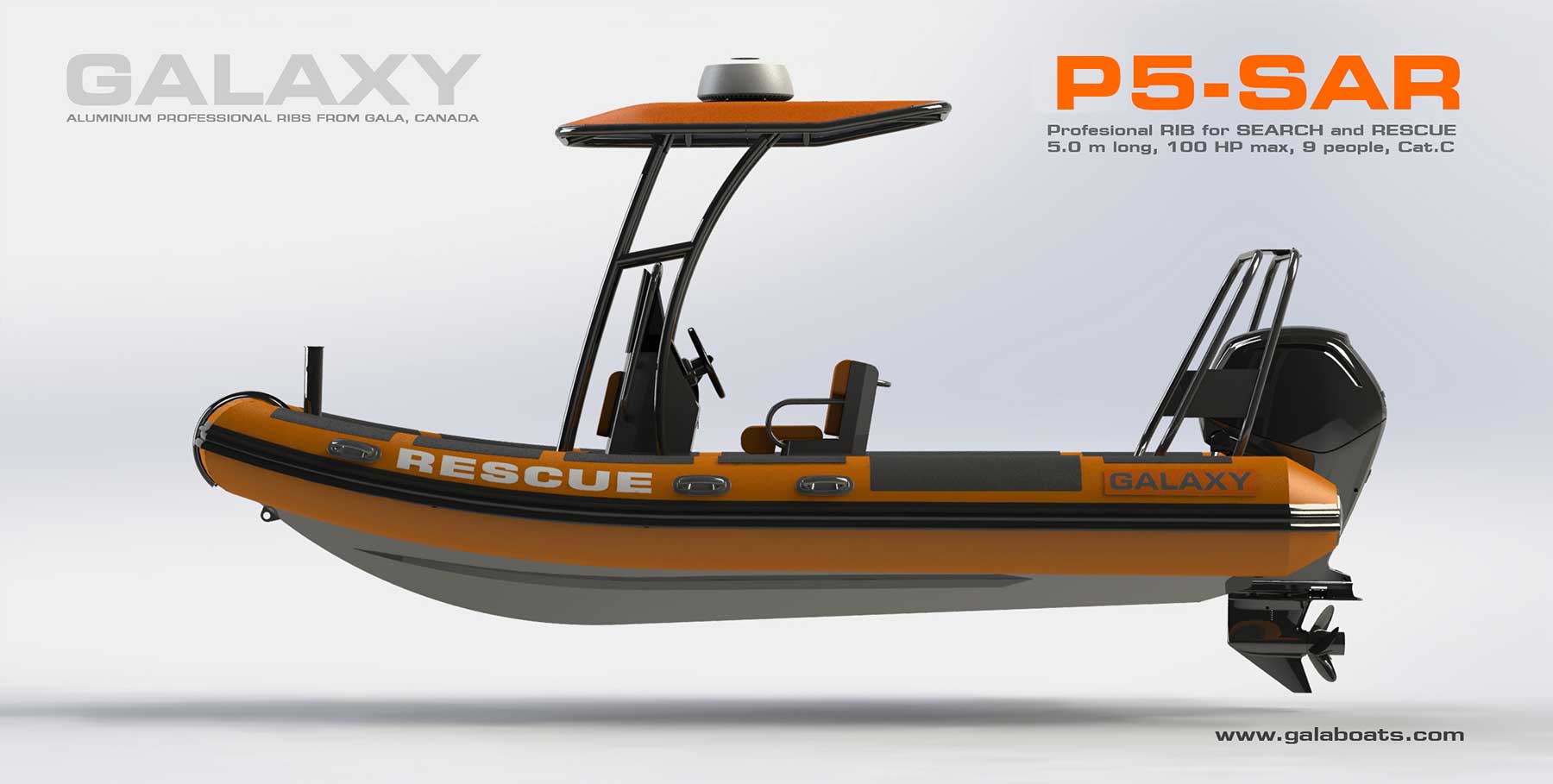

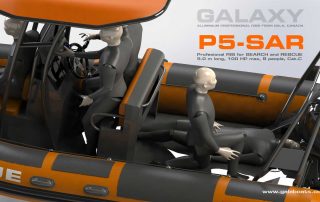

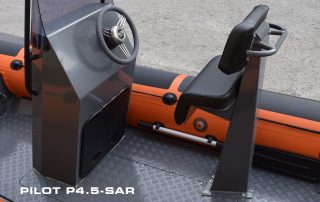

• Enough space for a person to lay down on stretcher for medical attention or transportation (SAR deck configuration)
• PRO decking with embossed antiskid surface QUINTET
• PASSIVATED and POWDER COATED reinforced welded aluminum hull with welded keel guard
• GALA-TABS hull extensions for superior performance
• Commercial grade inflatable tube made of VALMEX(PVC), TPU Polyurethane or HYPALON at your choice.
Each model is fully customizable with different steering consoles and seating layouts.
IMPORTANT MESSAGE TO ALL GALAXY CUSTOMERS!
We are happy to provide a unique and helpful service to each GALAXY customer: TO MAKE YOU SURE THAT THE BOAT YOU WANT TO ORDER IS EXACTLY WHAT YOU NEED, WE CREATE A 3-D VIZUALIZATION FOR EVERY SINGLE BOAT WITH ALL OPTIONS CHOOSEN FROM A HUGE VARIERY OF THEM , AVAILABLE FROM GALAXY! CONTACT US AND ASK FOR IT!
5 reasons to choose GALAXY
TRUE PRO GRADE DESIGN
GALAXY is TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.
FAST PRODUCTION & DELIVERY
We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!
100% CUSTOMIZED
We have a number of base boats with huge amount of optional equipment to choose from.
VARIETY OF DECK EQUIPMENT
GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!
3-D VISUALIZATION
We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!
VIDEO
COMING SOON
GALLERY
Features
STANDARD FEATURES:
• Aluminium PRO hull with welded keel guard, coated
• Embossed antiskid QUINTET PRO decking
• GALA -TABS performance transom extensions
• PVC inflatable tube with PRO-grade doubled rubrail, protection pads, lifeline, handles
• Overpressure valves

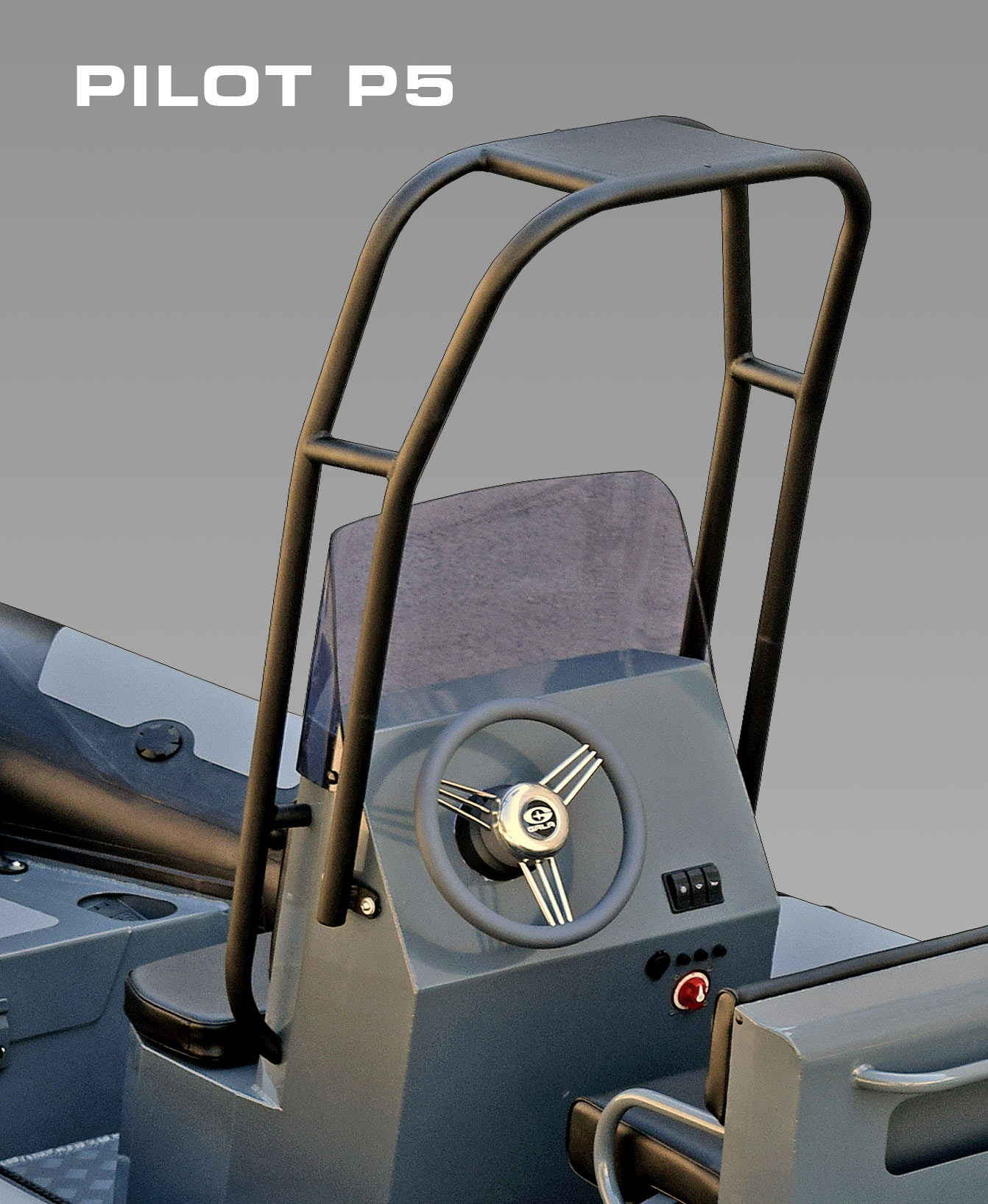

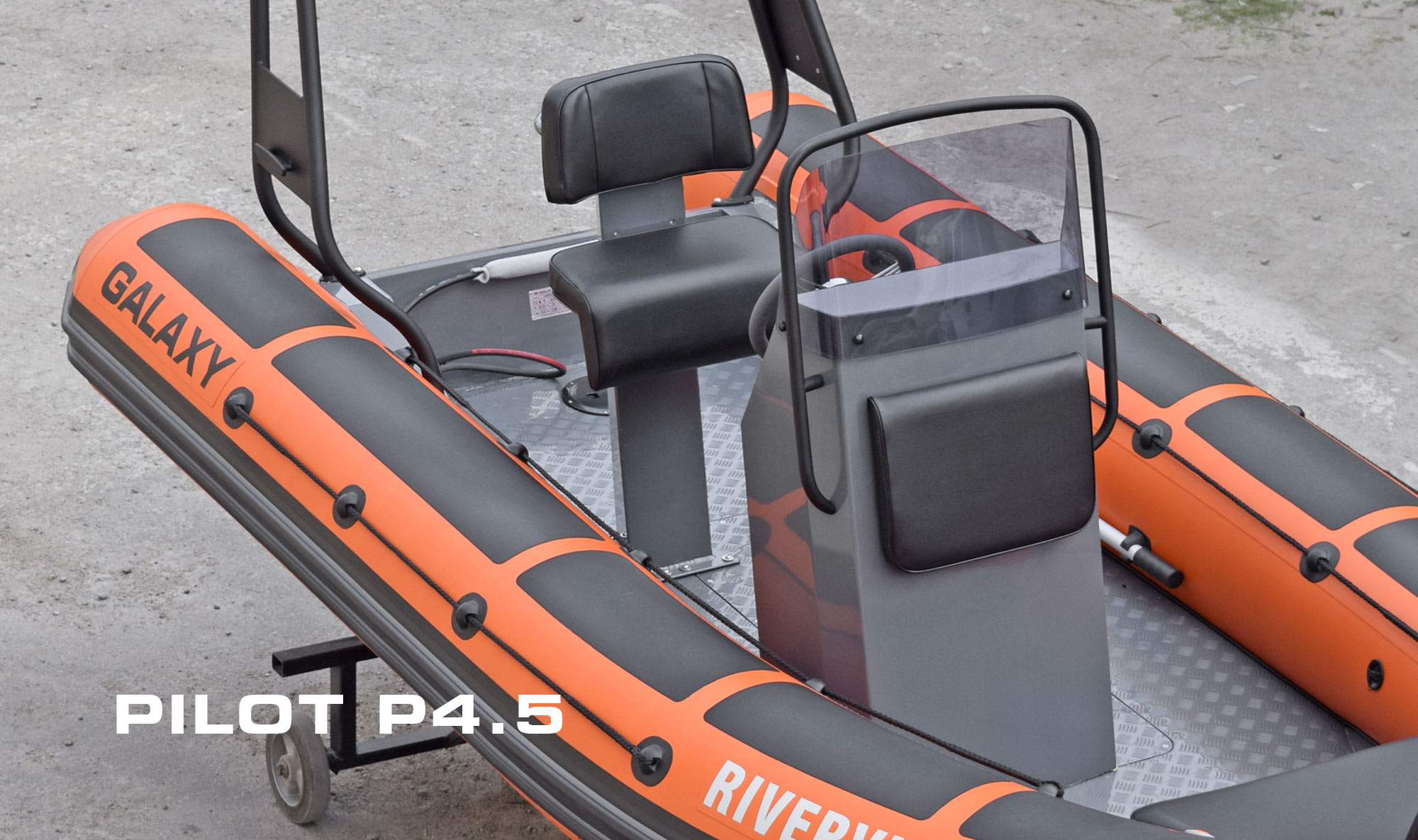

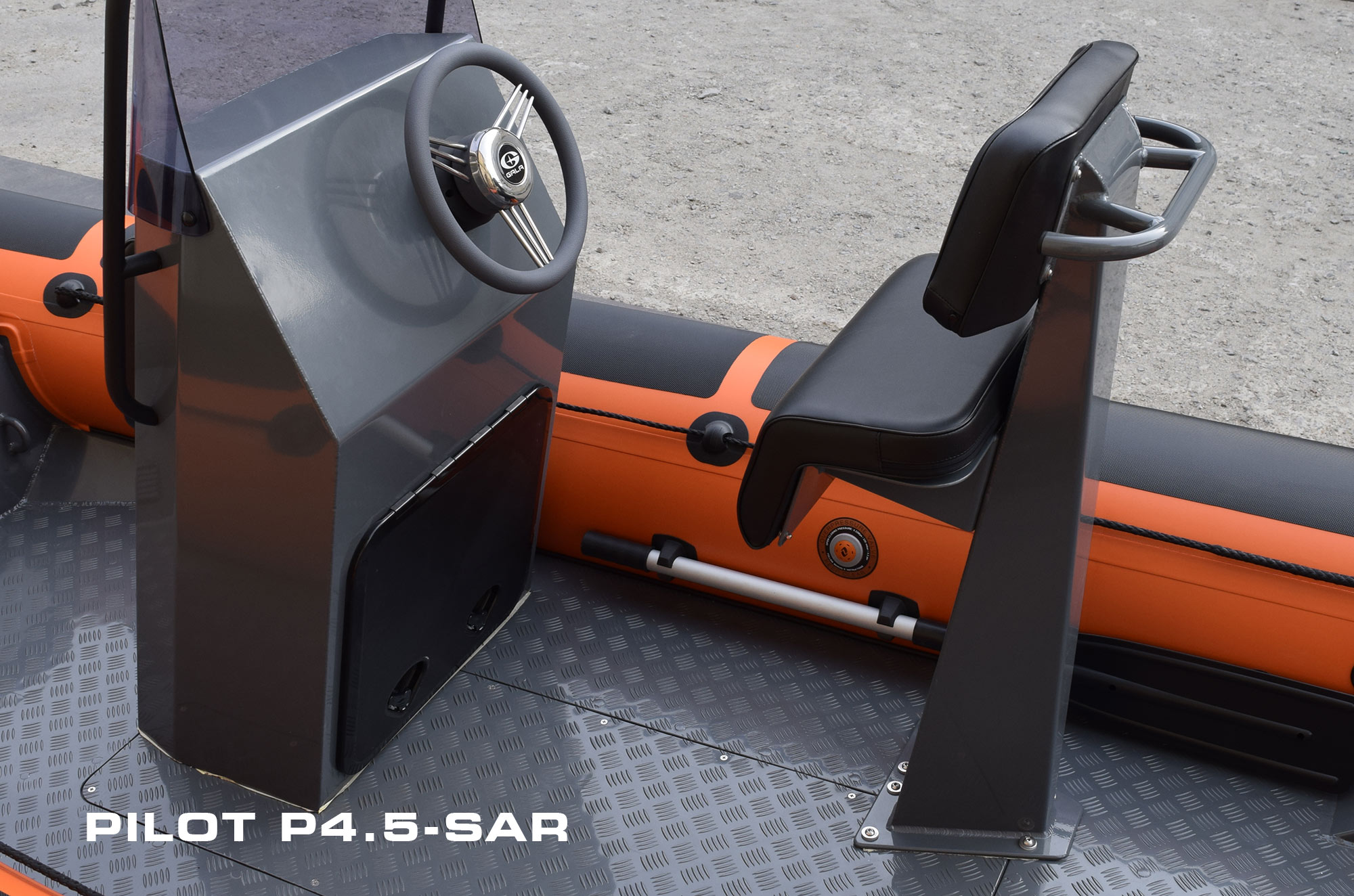

• Steering console C-04P with front seat, windshield and tailing
• Driver’s seat: S-04P
• Set of foot pump, 2 paddles and repair/service kit
• Steering and Seating Options:
• Steering console C-09 , high, without front seat
• Driver’s jockey seats S-10
• Bolster seat S12 , deck mount, with back rest
IMPORTANT! Please contact your local Dealer for detailed and up-to-date specifications and configuration information as every GALAXY pro boat is custom built and equipped for each customer. We will be happy to share with a large list of existing designs and create for you the ideal design.
OPTIONAL EQUIPMENT:
• HYPALON inflatable tube with rubrail, protection pads, lifeline, handles
• TPU Polyurethane tube with rubrail, protection pads, lifeline, handles
• Electric PRO system with 2 pole battery switch
• Fuel system with 81 lit built in tank, send, deck fill, tubing, wiring
• Mechanical steering system
• Steering wheel GALA Deluxe GRAY
• Hydraulic steering system
• Bow step plate with anchor roller
• Bow locker soft cushion
• T-top with wide equipment mounting plate
• Engine guard frame
• Steering console tower with mounting plate

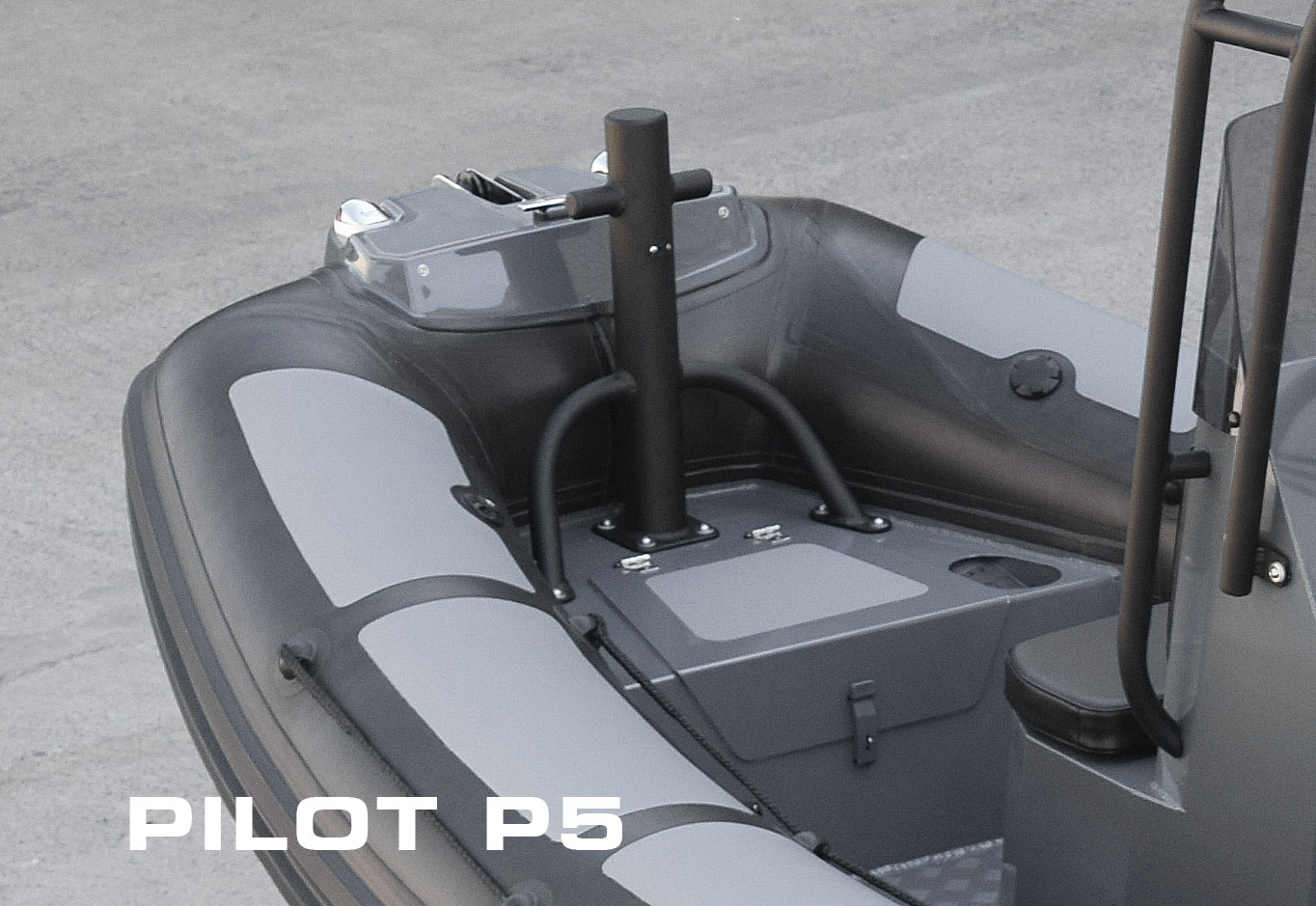

• Bow towing bollard with tube reinforcement

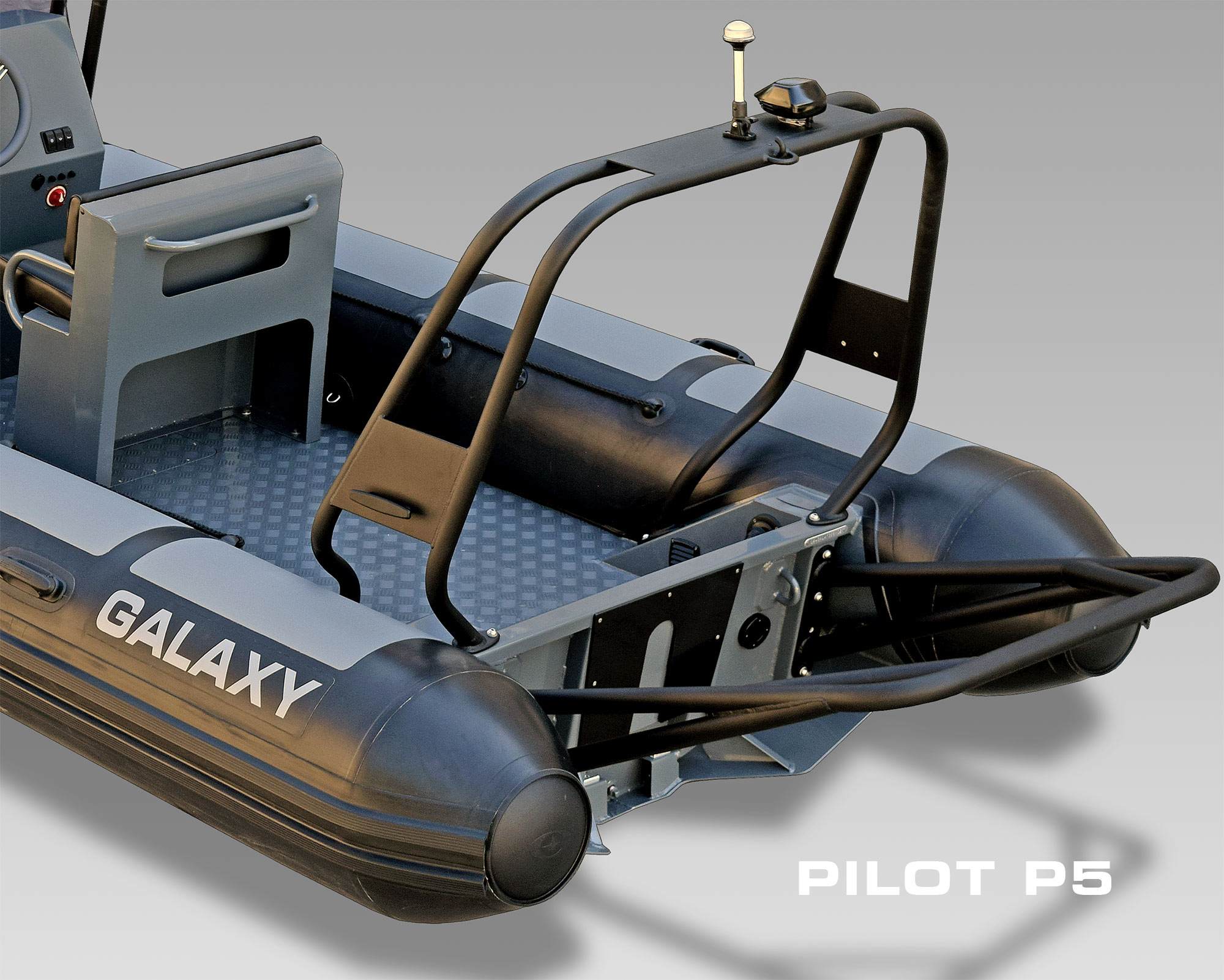

• Rear towing arch, wide
• Custom lettering on T-top
• Custom lettering on both sides of inflatable tube
Specifications
|
Models |
PILOT – P4.5 |
PILOT – P5 |
|---|---|---|
| Length overall | 450 cm / 14’9″ | 500 cm / 16’5″ |
| Length inside | 365 cm / 12’0″ | 415 cm / 13’7″ |
| Width overall | 215 cm / 7’1″ | 215 cm / 7’1″ |
| Width inside | 111 cm / 3’8″ | 111 cm / 3’8″ |
| Tube Diameter | 52 cm / 20″ | 52 cm / 20″ |
| Bare boat weight | 280 kg / 616 lbs | 370 kg / 814 lbs |
| Loading capacity | 800 kg / 1760 lbs | 1000 kg / 2200 lbs |
| Passenger capacity | 7 | 8 |
| Number of chambers | 5 | 5 |
| Engine recommended | 50 HP | 70 HP |
| Engine MAX | 70 HP | 100 HP |
| Engine weight MAX | 130 kg / 286 lbs | 180 kg / 396 lbs |
| Engine shaft length | 20″ (long) | 20″ (long) |
| Aluminum hull thickness | 4 mm / 5/32″ | 4 mm / 5/32″ |
| Boat design category | C | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colours
BLACK / GRAY
Black tube
with gray decor.
Dark gray hull.
(Default color)
ORANGE / BLACK
Orange tube
with black decor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
