ATLANTIS – A240D, A270D, A300D, A330D, A360D, A390D
A240D
7’10” long, 6HP max
A270D
8’10” long, 10HP max
A300D
9’10” long, 15HP max
A330D
10’10” long, 20HP max
A360D
11’10” long, 25HP max
A390D
12’10” long, 30HP max
GALA inflatable boats Atlantis A240D-A390D are the beginning of an extensive range of high-class aluminum hull RIBs, originally created by GALA Canada. If you are looking for the most durable and spacious tender or runabout, fully loaded with features, then these tenders are the best choice.
There are five different sizes in the range: A240D, A270D, A300D, A330D, A360D, A390D.
These tenders include many great features, including:

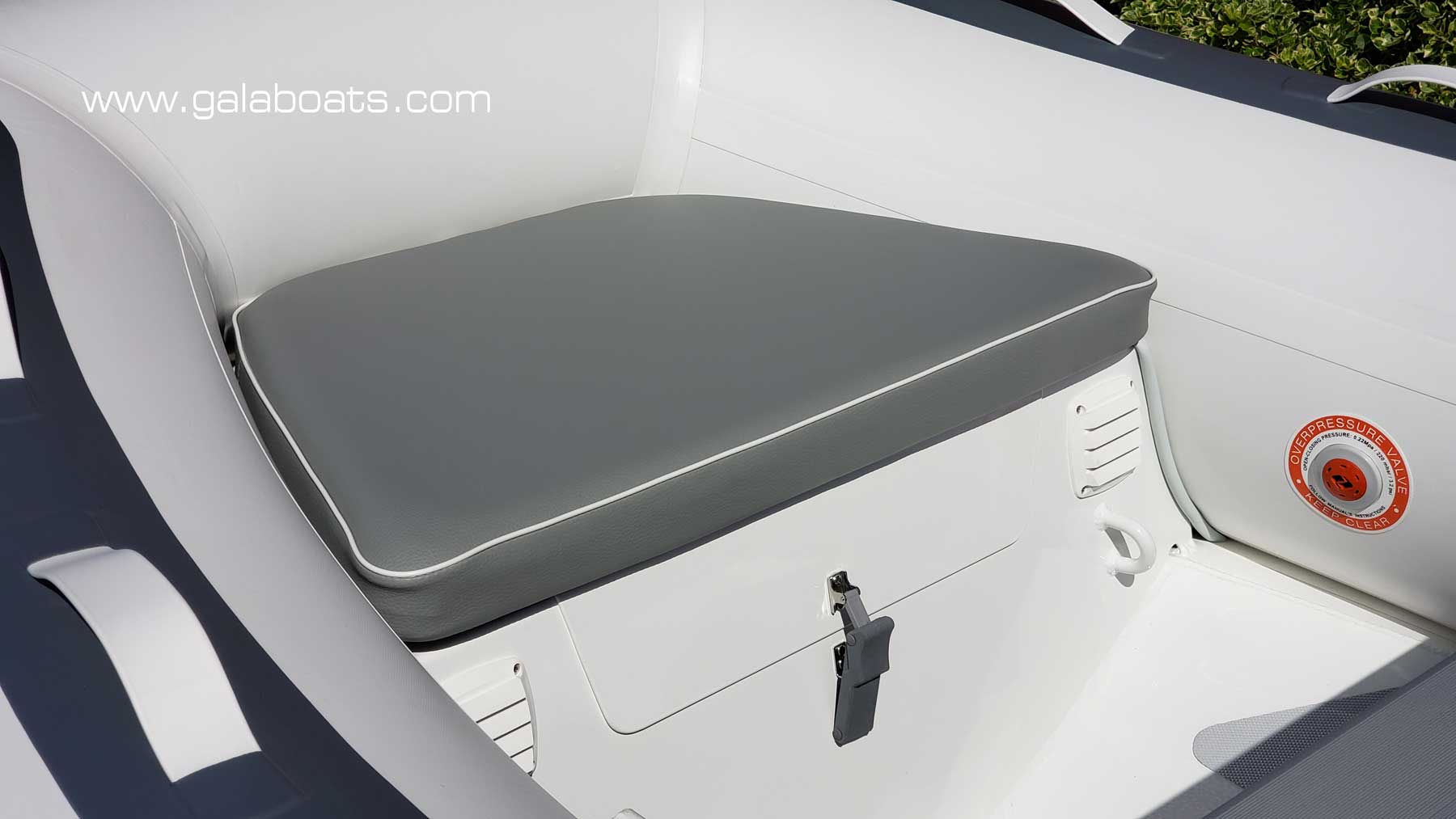

• Standard bow locker with bow cushion, large access door and great storage.
• Impressive passenger and carrying capacities, as well as power rating.
• Unbeatable performance and remarkably dry ride with «GALA TABS».
• Comfortable and dry cockpit with flat Double Deck.
• Expertly equipped original GALA fittings provide an elegant, yet practical design.
Every boat is available with either VALMEX or HYPALON tubing, in a variety of colors
5 reasons to choose GALA
“GALA TABS” hull design
GALA Tabs are the feature created and patented by GALA. It significantly improve performance and let you get on plane as easy as no any other boat!
BOW LOCKER FOR FUEL TANK
Bow locker is VENTILATED, and large enough to accommodate the fuel tank up to 12-15 lit (3-4 gal).
SLIDING ALUMINUM SEATS
Each model is equipped with a sliding aluminium seat with additional seat available.
EXTREMELY LOW WEIGHT
Each GALA Atlantis-D is extremely low weight. It makes them an unbeatable choice if you need something lite!
OVERPRESSURE VALVE
Each boat is equipped with the advanced Overpressure Valve for protection against overheating and over-inflating.
VIDEO
GALLERY
Features
STANDARD FEATURES:
- Medium-V, powder-coated aluminum hull with antiskid decking and hidden reinforced transom brackets
- «GALA TABS» – special patented GALA hull design with transom extensions
- Spacious bow locker with access hatch
- Soft bow locker cushion with close cell foam
- Two aluminum seats (one on A240D) with sliding installation system
- Substantial keel protector
- 4 lifting eyes and 3 towing bow eyes
- Bow handle and two rear handles
- GALA bow cleat and 8/10 grab handles
- Soft curved 3-chamber PVC or Hypalon buoyancy tube with rounded bow and original «GALA-JET» design
- Overpressure valve
- Tough rubbing strake with splash guard
- One-way drain valve with pull-up handle
- Two oars with oarlocks and oar stops
- High-efficiency foot pump
- Repair kit and manual
OPTIONAL EQUIPMENT:
- Overall cover
- Soft cushion with closed-cell foam for seat
- Under-seat bag
- SEADECK upgrade
- SILVERTEX upholstery upgrade
- Tube protector upgrade
- Transom launching wheels installation brackets
- Removable fishing panel with 2 rod holders
Specifications
Models |
A240D |
A270D |
A300D |
A330D |
A360D |
A390D |
---|---|---|---|---|---|---|
Length overall | 240 cm / 7’10” | 270 cm / 8’10” | 300 cm / 9’10” | 330 cm / 10’10” | 360 cm / 11’10” | 390 cm / 12’10” |
Length inside | 170 cm / 5’7″ | 192 cm / 6’4″ | 222 cm / 7’3″ | 252 cm / 8’3″ | 282 cm / 9’3″ | 312 cm / 10’3″ |
Width overall | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ | 170 cm / 5’7″ |
Width inside | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ | 82 cm / 2’8″ |
Tube Diameter | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ | 44 cm / 17″ |
Bare boat weight | 54 kg / 118 lbs | 59 kg / 130 lbs | 64 kg / 140 lbs | 69 kg / 152 lbs | 74 kg / 162 lbs | 80 kg / 174 lbs |
Loading capacity | 350 kg / 770 lbs | 450 kg / 990 lbs | 500 kg / 1100 lbs | 550 kg / 1210 lbs | 600 kg / 1320 lbs | 650 kg / 1430 lbs |
Passenger capacity | 3 | 4 | 5 | 5 | 6 | 6 |
Number of chambers | 3 | 3 | 3 | 3 | 3 | 3 |
Engine recommended | 5 HP | 8 HP | 10 HP | 15 HP | 20 HP | 25 HP |
Engine MAX | 6 HP | 10 HP | 15 HP | 20 HP | 25 HP | 30 HP |
Engine weight MAX | 35 kg / 77 lbs | 45 kg / 99 lbs | 50 kg / 110 lbs | 60 kg / 132 lbs | 70 kg / 154 lbs | 70 kg / 154 lbs |
Engine shaft length | 15″ (short) | 15″ (short) | 15″ (short) | 15″ (short) | 15″ (short) | 15″ (short) |
Aluminum hull thickness | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 2.5 mm / 7/64″ | 3 mm / 1/8″ |
Boat design category | D | D | C | C | C | C |
All technical data are subject to change without notice. The products details and specifications may be changed from specified herein. All the dimensions are + or – 3%. All the weights are + or – 10%
Tube and decor colors
LIGHT GRAY / GRAY
Light gray tube
with gray decor.
White hull.
(Default color)
WHITE / GRAY
White tube
with gray decor.
White hull.
BLACK / GRAY
Black tube
with gray decor.
Dark gray hull.
CUSTOM COLOR
Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.
